Conduction of Heat

Admin / March 13, 2026

Conduction of Heat

Understanding how thermal energy transfers through materials without the material itself moving

Heat Transfer through Solids

What is Conduction?

Particle Vibration

Heat conduction occurs when vibrating particles pass their kinetic energy to neighboring particles.

Energy Transfer

Thermal energy moves from the hotter end to the colder end of an object.

Temperature Gradient

The greater the temperature difference, the faster the rate of conduction.

Key Concept

Conduction is the main method of heat transfer in solids. In metals, free electrons also help transfer heat very efficiently.

Particle Model of Conduction

How Heat Travels Through Materials

Cold End

Particles vibrate slowly

Heat Source →

Particles vibrate rapidly

Energy transfers from hot to cold as vibrating particles collide with their neighbors

Good vs Poor Conductors

Good Conductors

Materials that transfer heat quickly:

Silver - Best conductor
Copper - Used in pans
Aluminum - Cooking foil
Iron - Radiators

High Thermal Conductivity

Poor Conductors (Insulators)

Materials that transfer heat slowly:

Wood - Handles
Plastic - Coatings
Glass - Windows
Air - Trapped in insulation

Low Thermal Conductivity

Why are metals good conductors?

Metals have free electrons that can move through the metal and transfer kinetic energy quickly from the hot end to the cold end. This makes them much better conductors than non-metals.

Thermal Conductivity Values

Material	Thermal Conductivity (W/mK)	Type	Common Use
Silver	429	Excellent Conductor	Electronics
Copper	401	Excellent Conductor	Cooking pans, wires
Aluminum	237	Good Conductor	Foil, pans
Iron	80	Moderate Conductor	Radiators
Glass	0.8	Poor Conductor	Windows
Wood	0.15	Insulator	Handles, furniture
Air	0.024	Excellent Insulator	Double glazing

Higher values mean better conduction of heat

Interactive Conduction Experiment

See how different materials conduct heat at different rates:

20°C

Heat Intensity

50%

Observations:

Copper

Heats fastest

Iron

Heats quickly

Glass

Heats slowly

Wood

Heats very slowly

Factors Affecting Conduction

Temperature Difference

Greater temperature difference = faster heat transfer

Cross-sectional Area

Thicker materials conduct more heat

Length

Shorter distance = faster conduction

Material Type

Different materials have different conductivity

Time

Longer time = more heat transferred

Rate of conduction ∝ (Area × Temperature Difference) ÷ (Length × Material Resistance)

Real-World Applications

Copper or aluminum bases conduct heat quickly and evenly to food.

Metal conducts heat from hob to food
Wood/plastic handles are insulators

Materials like fiberglass trap air to reduce heat loss through walls and roofs.

Loft insulation
Cavity wall insulation
Double glazing

Vacuum flasks use a vacuum to prevent conduction and keep drinks hot or cold.

Double-walled construction
Vacuum prevents conduction

Metal fins on electronics conduct heat away from components to prevent overheating.

Made of copper or aluminum
Large surface area helps cooling

Insulation in Daily Life

Clothing

Trapped air between fibers insulates our bodies

Upholstery

Foam and fabric reduce heat loss

Double Glazing

Air gap between glass panes

Coolers

Expanded polystyrene keeps food cold

Pizza Boxes

Corrugated cardboard traps air

Safety Gear

Heat-resistant gloves for handling hot objects

Solved Examples

GCSE Foundation

Example 1: Identifying Conductors

Question: Explain why a metal spoon in a hot drink becomes hot to touch, but a plastic spoon does not.

GCSE Higher

Example 2: Comparing Conductivity

Question: A copper rod and a glass rod of the same dimensions are heated at one end. After 2 minutes, the copper rod is hot along its entire length, but the glass rod is only hot at the heated end. Explain why.

Grade 10 Challenge

Example 3: Practical Application

Question: A house has single-glazed windows. Suggest two ways to reduce heat loss through the windows and explain how they work.

Quick Facts

Best Conductor Silver

Best Insulator Vacuum

Metals conduct via Free electrons

Non-metals conduct via Particle vibration

Conservation and dissipation of energy

Admin / March 13, 2026

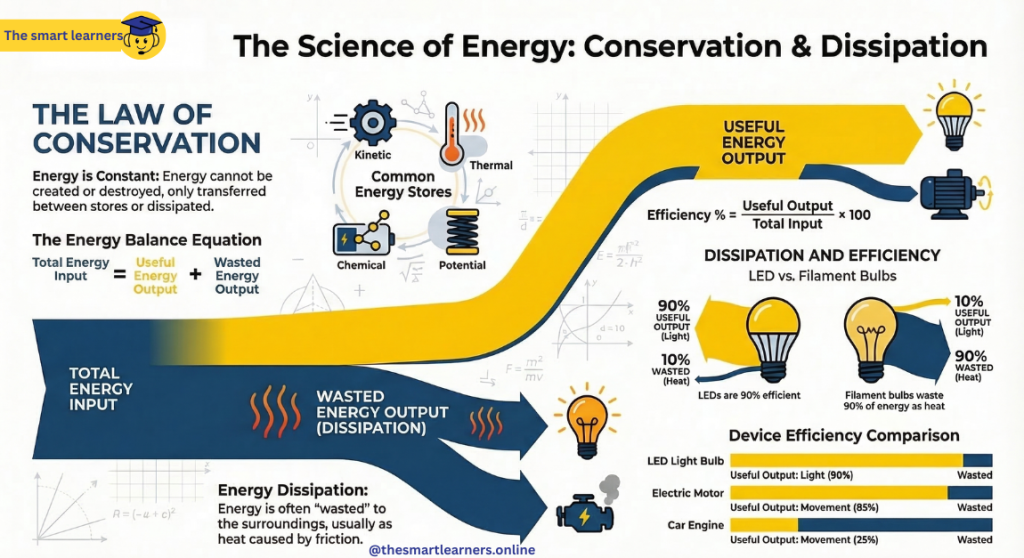

Conservation & Dissipation of Energy

Understanding how energy is transferred, stored, and wasted in physical systems

Energy cannot be created or destroyed

The Law of Conservation of Energy

"Energy cannot be created or destroyed, only transferred from one store to another or dissipated to the surroundings."

⚡

Input Energy

Total energy going into a system

✓

Useful Energy

Energy transferred to where it's wanted

✗

Dissipated Energy

Energy wasted to surroundings

Key Principle

Total energy input = Useful energy output + Wasted energy output

No energy is ever lost - it just becomes less useful!

Energy Stores & Transfers

Kinetic Energy

Energy of moving objects

Example: A moving car, running athlete

Thermal Energy

Energy of hot objects

Example: Hot coffee, warm radiator

Gravitational Potential

Energy due to height

Example: Water behind a dam, lifted weight

Chemical Energy

Energy stored in chemical bonds

Example: Food, batteries, fuel

Elastic Potential

Energy in stretched/compressed objects

Example: Stretched spring, drawn bow

Nuclear Energy

Energy stored in atomic nuclei

Example: Nuclear power, sun

Dissipation of Energy

When energy is transferred, some is always dissipated (wasted) to the surroundings, usually as thermal energy.

Energy Flow in a Light Bulb

10 J/s

Light Energy (Useful)

90 J/s

Heat Energy (Wasted)

100 J/s

Total Input

Only 10% of electrical energy is converted to light - the rest is dissipated as heat!

Common Ways Energy is Dissipated:

Friction - Kinetic energy → Thermal energy
Sound - Energy transferred as noise
Air Resistance - Objects heating the air
Electrical Resistance - Wires heating up

Efficiency

Efficiency tells us how much of the input energy is transferred usefully.

As a Decimal

Efficiency =
Useful Output ÷ Total Input

As a Percentage

Efficiency =
(Useful ÷ Total) × 100%

Example: LED Bulb (90% Efficient)

90% Useful

Example: Filament Bulb (10% Efficient)

10% Useful

Efficiency of Common Devices:

LED Bulb

90%

Electric Motor

85%

Car Engine

25%

Filament Bulb

10%

Solar Panel

20%

Sankey Diagrams

Sankey diagrams show energy flow - the width of the arrows represents the amount of energy.

LED Light Bulb

100 J Input

90 J Light

10 J Heat

Efficiency: 90%

Car Engine

100 J Fuel

25 J Motion

75 J Heat + Sound

Efficiency: 25%

The thicker the arrow, the more energy is transferred that way!

Interactive Efficiency Calculator

Calculate Efficiency

Useful Energy Output (J)

75 J

Total Energy Input (J)

100 J

Efficiency

75%

Wasted Energy: 25 J

Real-World Applications

Electric Vehicles

Electric cars are much more efficient than petrol cars.

85%

Electric Motor

25%

Petrol Engine

Electric cars waste less energy as heat

Home Insulation

Reduces energy dissipation from houses.

30%

Heat Saved

£300

Yearly Saving

Loft insulation, double glazing, cavity walls

LED Lighting

LED bulbs are 90% efficient vs 10% for filament bulbs.

90%

LED

10%

Filament

Uses 90% less electricity for same light

Regenerative Braking

Captures kinetic energy that would otherwise be wasted as heat.

70%

Energy Recovered

30%

Range Increase

Used in electric and hybrid vehicles

Solved Examples

GCSE Foundation

Example 1: Calculating Efficiency

Question: A motor transfers 500J of electrical energy. It produces 400J of kinetic energy. Calculate its efficiency.

GCSE Higher

Example 2: Finding Wasted Energy

Question: A television with 250W input power is 65% efficient. Calculate the power wasted.

Grade 10 Challenge

Example 3: Sankey Diagram

Question: A kettle uses 2000J of electrical energy. 1500J heats the water, the rest is wasted. Draw a Sankey diagram and calculate efficiency.

Energy Efficiency of Common Devices

Device	Input Energy	Useful Output	Wasted Output	Efficiency
LED Light Bulb	100 J	90 J (light)	10 J (heat)	90%
Electric Motor	100 J	85 J (movement)	15 J (heat)	85%
Solar Panel	100 J	20 J (electricity)	80 J (heat)	20%
Car Engine	100 J	25 J (movement)	75 J (heat, sound)	25%
Filament Bulb	100 J	10 J (light)	90 J (heat)	10%

Reducing Energy Dissipation

Lubrication

Reduces friction between moving parts, reducing heat dissipation.

Example: Oil in car engines

Insulation

Traps air to reduce thermal energy transfer.

Example: Loft insulation, double glazing

Streamlining

Reduces air resistance, saving energy.

Example: Aerodynamic cars

Low Resistance

Using materials with lower electrical resistance.

Example: Superconductors, thicker wires

Key Facts

Conservation Law Energy can't be destroyed

Dissipation Energy spreads out

Maximum Efficiency 100% (theoretically)

Wasted Energy Usually heat

power

Admin / February 16, 2026

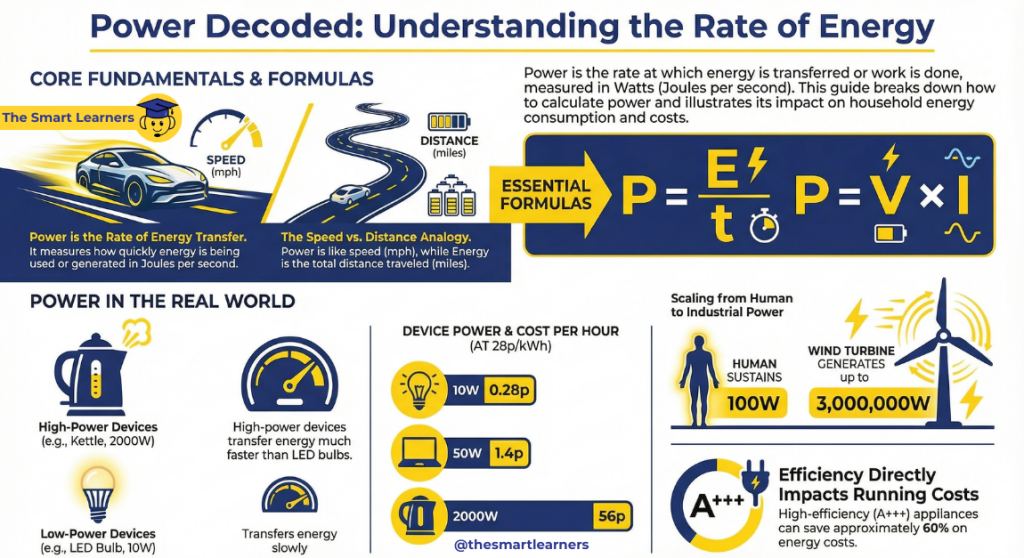

Power

Understanding the rate of energy transfer - from light bulbs to power plants

P = E/t = W/t = VI

What is Power?

Definition

Power is the rate at which energy is transferred or work is done. It tells us how quickly energy is being used or generated.

Key Concept

A high power device transfers energy quickly, while a low power device transfers energy slowly.

Unit

Power is measured in watts (W). 1 watt = 1 joule per second (1 W = 1 J/s)

Real-World Understanding

A 100W light bulb converts 100 joules of electrical energy into light and heat every second. A 2000W kettle converts 2000 joules per second - that's why it heats water much faster!

Power Formulas

Basic Power Formula

P = E / t

Power (W)

Energy (J)

Time (s)

Work Formula

P = W / t

Power (W)

Work (J)

Time (s)

Electrical Power

P = V × I

Power (W)

Voltage (V)

Current (A)

Alternative Electrical

P = I²R

Power (W)

Current (A)

Resistance (Ω)

Formula Rearrangements

Find Energy

E = P × t

Find Time

t = E ÷ P

Find Current

I = P ÷ V

Find Voltage

V = P ÷ I

Interactive Power Calculator

Adjust the sliders to see how power, energy, and time are related:

Energy Transfer Simulator

Power (Watts)

100 W

Time (seconds)

60 s

Energy Used

6000 J

E = P × t

Energy Transfer Rate

100 J/s

Your device transfers 100 joules of energy every second

In 60 seconds, total energy = 6000 J

Household Appliance Power Ratings

Different appliances have different power ratings - see how they compare:

LED Light Bulb

10W

Uses 10 J/s
Cost: ~£0.03 per day
100 hours on 1 kWh

Laptop

50W

Uses 50 J/s
Cost: ~£0.15 per day
20 hours on 1 kWh

LED TV (50")

100W

Uses 100 J/s
Cost: ~£0.30 per day
10 hours on 1 kWh

Refrigerator

150W

Uses 150 J/s (avg)
Cost: ~£0.45 per day
Runs 30% of time

Kettle

2000W

Uses 2000 J/s
Cost: ~£0.10 per boil
30 minutes on 1 kWh

Electric Shower

9000W

Uses 9000 J/s
Cost: ~£0.45 per 10 mins
6.7 minutes on 1 kWh

Key Point: High power appliances (like kettles and showers) transfer energy very quickly, which is why they heat things rapidly but also cost more to run.

Real-World Power Examples

Solar Panel

Typical residential solar panel produces about 300W of power in full sunlight.

300W

Peak Power

1.5kWh

Daily Energy

Car Engine

A typical family car engine produces around 100,000W (100kW) of power.

100kW

Engine Power

134hp

Horsepower

Wind Turbine

Modern wind turbines can generate up to 3,000,000W (3MW) of power.

3MW

Peak Power

2000 homes

Can Power

Human Power

An average healthy human can sustain about 100W of mechanical power output.

100W

Sustained

400W

Peak (short)

Energy Efficiency & Cost

Appliance Energy Cost Calculator

Appliance Power (W)

Hours Used per Day

Electricity Rate (p/kWh)

Efficiency Ratings (A+++ to G)

A+++ D G

A+++

Most Efficient

Saves ~60% energy

Average

Standard efficiency

Least Efficient

Costs 3x more to run

Solved Examples

GCSE Foundation

Example 1: Energy Transfer

Question: A 2.5kW kettle is used for 3 minutes. How much energy does it transfer?

GCSE Higher

Example 2: Electrical Power

Question: A hairdryer operates at 230V and draws a current of 4.35A. Calculate its power and the energy used in 5 minutes.

Grade 10 Challenge

Example 3: Cost Calculation

Question: A 2kW electric heater runs for 4 hours daily. If electricity costs 28p per kWh, calculate the weekly running cost.

Power Calculator

Solve Power Problems

Energy (J)

Time (s)

Power (W)

Time (s)

Energy (J)

Power (W)

Voltage (V)

Current (A)

Result:

Power Rating Comparison

Device	Typical Power	Energy in 1 hour	Cost per hour*
LED Light Bulb	10W	0.01 kWh	0.28p
Laptop	50W	0.05 kWh	1.4p
LED TV (50")	100W	0.1 kWh	2.8p
Fridge Freezer	150W	0.15 kWh	4.2p
Desktop Computer	300W	0.3 kWh	8.4p
Microwave	800W	0.8 kWh	22.4p
Kettle	2000W	2.0 kWh	56p
Electric Shower	9000W	9.0 kWh	£2.52

*Based on 28p per kWh electricity rate

Quick Facts

1 kW 1000 watts

1 MW 1,000,000 watts

1 GW 1,000,000,000 watts

1 hp 746 watts

1 kWh 3.6 million J

Common Power Ratings

LED Bulb 5-15W

Phone Charger 5-20W

Laptop 30-100W

TV 50-250W

Kettle 2000-3000W

Book Free Demo Class

Common Mistake

Don't confuse power (watts) with energy (joules or kWh)! Power is how FAST you use energy, energy is HOW MUCH you use.

Analogy: Power is like speed (mph), Energy is like distance (miles).

Physics

Specific Heat Capacity

Admin / February 16, 2026

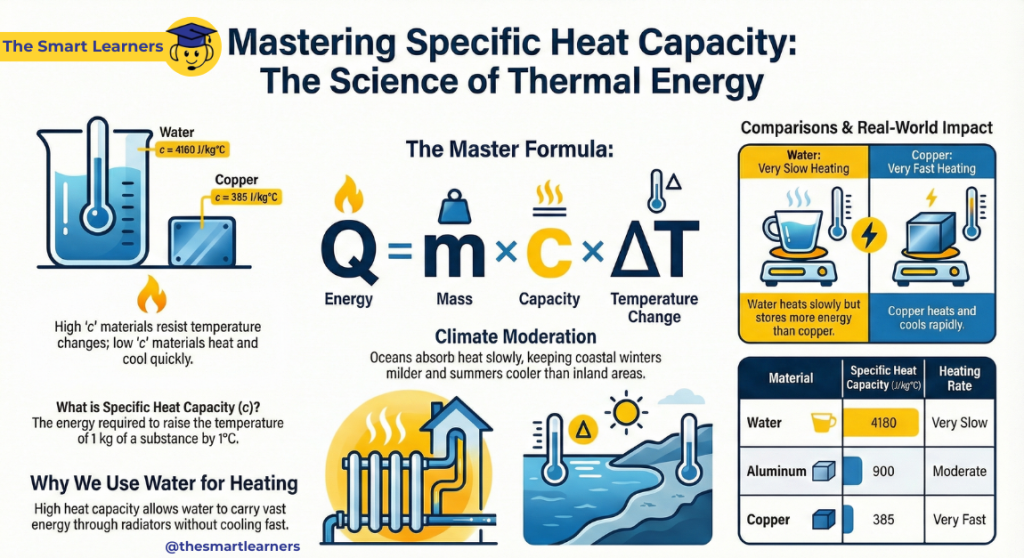

Specific Heat Capacity

Understanding why different materials heat up at different rates - essential for GCSE Physics

What is Specific Heat Capacity?

Specific heat capacity (c) is the amount of energy required to raise the temperature of 1 kg of a substance by 1°C. It's a measure of how much energy a material can store.

High c

Lots of energy needed to change temperature. Material heats slowly, cools slowly. Example: Water (4180 J/kg°C)

Low c

Little energy needed to change temperature. Material heats quickly, cools quickly. Example: Copper (385 J/kg°C)

Key Formula

Q = m × c × ΔT
Energy = mass × specific heat capacity × temperature change

Real-World Analogy

Think of specific heat capacity as a material's "thermal inertia." Water has high thermal inertia (like a heavy object that's hard to push) - it resists temperature changes. Metals have low thermal inertia (like a light object that's easy to push) - their temperature changes easily.

The Specific Heat Capacity Formula

Specific Heat Capacity Formula

Q = m × c × ΔT

Where energy transferred (Q) equals mass (m) times specific heat capacity (c) times temperature change (ΔT)

Energy (joules, J)

Mass (kilograms, kg)

Specific Heat Capacity (J/kg°C)

ΔT

Temperature Change (°C)

Rearranging the Formula

We can rearrange the formula to solve for any variable:

Find Energy (Q)

Q = m × c × ΔT

Find Mass (m)

m = Q ÷ (c × ΔT)

Find c

c = Q ÷ (m × ΔT)

Find ΔT

ΔT = Q ÷ (m × c)

Interactive Heating Simulation

Watch how different materials heat up at different rates due to their specific heat capacities.

Material:

Mass (kg): 1.0

1.0 kg

Heater Power (W): 1000

1000 W

Time (s): 60

60 s

Heating Calculations

Energy Supplied

60,000 J

Q = Power × Time

Temperature Rise

15.6 °C

ΔT = Q ÷ (m × c)

Final Temperature

35.6 °C

Starting at 20°C

ΔT = Q ÷ (m × c) = 60,000 J ÷ (1.0 kg × 385 J/kg°C) = 15.6 °C

Notice how materials with lower specific heat capacity (like copper) heat up much faster than water with the same energy input!

Comparing Specific Heat Capacities

Different materials have very different specific heat capacities. Here's how they compare:

Material	Specific Heat Capacity (J/kg°C)	Heating Rate*	Practical Significance
Water	4180	Very Slow	Excellent heat store, moderates climate
Wood	1700	Slow	Good insulator, feels warm to touch
Aluminum	900	Moderate	Cooking pans, heats evenly
Iron	450	Fast	Radiators, heats quickly
Copper	385	Very Fast	Electrical wires, heat exchangers
Lead	130	Extremely Fast	Lowest common metal, feels cold

*Heating rate comparison assumes same mass and energy input

Temperature Rise vs. Specific Heat Capacity

For the same energy input, materials with lower specific heat capacity experience greater temperature increases.

Practical Applications

Specific heat capacity has important real-world applications:

Central Heating Systems

Water is used in radiators because its high specific heat capacity means it can carry lots of heat around a building without cooling down too quickly.

Comparison: 1 kg of water cooling 1°C releases 4180 J, while 1 kg of iron cooling 1°C releases only 450 J.

Cooking & Food

Different materials in cookware heat differently. Copper-bottom pans heat quickly (low c), while cast iron retains heat well (moderate c but high density).

Example: Water in food prevents burning - it absorbs heat without getting too hot (high c).

Climate Moderation

Oceans and large lakes moderate coastal climates because water's high c means it heats and cools slowly, preventing extreme temperature changes.

Fact: Coastal areas have milder winters and cooler summers than inland areas at the same latitude.

Experiment: Comparing Water and Oil

A common GCSE experiment compares the specific heat capacity of water and oil by heating equal masses with identical heaters and measuring temperature rise.

Water Beaker

Specific Heat: 4180 J/kg°C

Temperature Rise: 5.0 °C

Observation: Heats slowly

Oil Beaker

Specific Heat: ~2000 J/kg°C

Temperature Rise: 10.5 °C

Observation: Heats quickly

With the same heater and same time, oil heats about twice as much as water because it has about half the specific heat capacity.

Solved Example Problems

Example 1: Heating Water

GCSE Foundation

Calculate the energy required to heat 2.5 kg of water from 20°C to 80°C. The specific heat capacity of water is 4200 J/kg°C.

Step 1: Write the formula

Q = m × c × ΔT

Step 2: Identify known values

m = 2.5 kg, c = 4200 J/kg°C, T₁ = 20°C, T₂ = 80°C

Step 3: Calculate temperature change

ΔT = T₂ - T₁ = 80°C - 20°C = 60°C

Step 4: Substitute values into formula

Q = 2.5 × 4200 × 60

Step 5: Perform multiplication

2.5 × 4200 = 10,500

10,500 × 60 = 630,000

Step 6: State the answer with units

Q = 630,000 J or 630 kJ

Step 7: Interpretation

It takes 630 kJ of energy to heat 2.5 kg of water by 60°C. Water's high specific heat capacity means it requires a lot of energy to heat up.

Example 2: Finding Specific Heat Capacity

GCSE Higher

In an experiment, a 0.8 kg block of metal is heated using a 500 W heater for 3 minutes. Its temperature increases from 25°C to 85°C. Calculate the specific heat capacity of the metal.

Step 1: Calculate energy supplied

Power = 500 W, Time = 3 minutes = 180 seconds

Energy = Power × Time = 500 × 180 = 90,000 J

Step 2: Write the specific heat capacity formula

Q = m × c × ΔT

Step 3: Rearrange to solve for c

c = Q ÷ (m × ΔT)

Step 4: Identify known values

Q = 90,000 J, m = 0.8 kg, ΔT = 85°C - 25°C = 60°C

Step 5: Substitute values into formula

c = 90,000 ÷ (0.8 × 60)

Step 6: Calculate denominator

0.8 × 60 = 48

c = 90,000 ÷ 48

Step 7: Perform division

90,000 ÷ 48 = 1,875

Step 8: State the answer with units

c = 1875 J/kg°C

Step 9: Interpretation

The metal has a specific heat capacity of 1875 J/kg°C, which is moderately high (between aluminum and wood).

Example 3: Cooling Problem

Grade 10

A 0.5 kg copper kettle (c = 385 J/kg°C) containing 1.2 kg of water (c = 4200 J/kg°C) cools from 95°C to 25°C. Calculate the total energy released to the surroundings.

Step 1: Calculate energy released by copper kettle

Q_copper = m × c × ΔT = 0.5 × 385 × (95 - 25)

Q_copper = 0.5 × 385 × 70 = 13,475 J

Step 2: Calculate energy released by water

Q_water = m × c × ΔT = 1.2 × 4200 × (95 - 25)

Q_water = 1.2 × 4200 × 70 = 352,800 J

Step 3: Calculate total energy released

Q_total = Q_copper + Q_water

Q_total = 13,475 + 352,800 = 366,275 J

Step 4: Convert to kJ and round appropriately

366,275 J = 366.275 kJ ≈ 366 kJ

Step 5: State the answer with units

Total energy released = 366 kJ

Step 6: Interpretation

Notice that although the copper has lower specific heat capacity, the water releases much more energy because it has more mass and much higher c. The water accounts for 96% of the total energy released!

Practice Problems

Test your understanding with these specific heat capacity problems:

Problem 1: Heating Aluminum

GCSE Foundation

A 1.2 kg aluminum pan (c = 900 J/kg°C) is heated from 20°C to 180°C. Calculate the thermal energy required.

Problem 2: Finding Temperature Change

GCSE Higher

When 75,000 J of energy is supplied to 3 kg of iron (c = 450 J/kg°C), calculate the temperature increase.

Problem 3: Mixed Materials

Grade 10 Challenge

A 0.25 kg copper container (c = 385 J/kg°C) holds 0.8 kg of water (c = 4200 J/kg°C). The system is heated from 15°C to 85°C.

Calculate the energy needed to heat the water.
Calculate the energy needed to heat the copper container.
Calculate the total energy required.

Water Energy (J):

Copper Energy (J):

Total Energy (J):

Specific Heat Capacity Calculator

Use this calculator to solve for any variable in the specific heat capacity equation (Q = m × c × ΔT).

Solve Specific Heat Problems

Mass (kg)

Specific Heat (J/kg°C)

ΔT (°C)

Q (J)

Specific Heat (J/kg°C)

ΔT (°C)

Q (J)

Mass (kg)

ΔT (°C)

Q (J)

Mass (kg)

Specific Heat (J/kg°C)

Result:

Practical Applications

Free Demo Class

Master specific heat capacity calculations and applications with our expert tutors in an interactive online session

Book Free Demo

Limited spots available for Year 9-10 students

Quick Tip: Water's Special Property

Water has an unusually high specific heat capacity (4180 J/kg°C) compared to most common materials. This makes it excellent for storing heat, which is why it's used in central heating systems and why large bodies of water moderate climate.

Units Check

Always ensure your units are consistent: mass in kg, specific heat in J/kg°C, temperature change in °C, and energy in joules (J). 1 kJ = 1000 J.

Common Mistake

Don't confuse specific heat capacity with thermal conductivity! Specific heat capacity tells us how much energy is needed to change temperature. Thermal conductivity tells us how quickly heat travels through a material.

Quick Reference

Water: 4180 J/kg°C
Ice: 2100 J/kg°C
Aluminum: 900 J/kg°C
Iron: 450 J/kg°C
Copper: 385 J/kg°C
Lead: 130 J/kg°C

Physics

Change in Energy

Admin / January 15, 2026

Energy Conversion & Conservation | SmartLearners

Energy Conversion & Conservation

Understanding how energy transforms between different forms while following the Law of Conservation of Energy

The Law of Conservation of Energy

Energy Cannot Be Created or Destroyed

Total Energy_initial = Total Energy_final

Energy can be transferred from one object to another, or transformed from one form to another, but the total amount of energy in a closed system remains constant.

Key Concept

When energy changes form, some energy may appear to be "lost" but it's actually transferred to the surroundings as thermal energy (heat). In real systems, energy conversions are never 100% efficient due to friction, air resistance, sound, and other factors.

Forms of Energy

Energy exists in many different forms. Here are the main types we'll focus on:

Gravitational Potential Energy (GPE)

Energy stored due to height: GPE = mgh

Example: Water at top of a dam, roller coaster at highest point

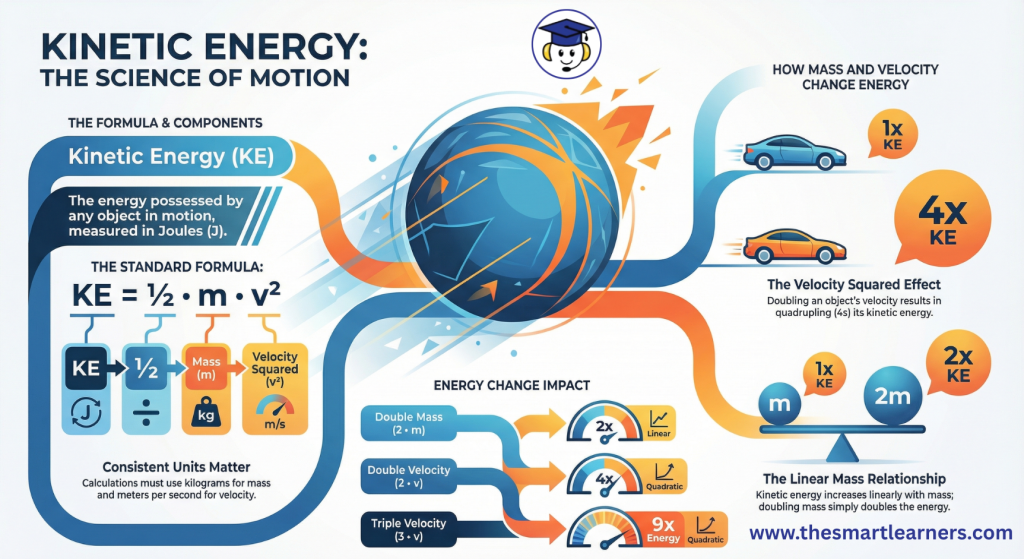

Kinetic Energy (KE)

Energy of motion: KE = ½mv²

Example: Moving car, falling object, flowing water

Elastic Potential Energy (EPE)

Energy stored in stretched/compressed objects: EPE = ½kx²

Example: Stretched spring, drawn bow, compressed trampoline

Thermal Energy

Energy due to particle motion: Q = mcΔT

Example: Heat from friction, warm objects, steam

Common Energy Conversions

Energy constantly changes form in everyday situations. Here are some important conversions:

GPE → KE

Falling Objects & Roller Coasters

Description: As an object falls, its height decreases (GPE decreases) and its speed increases (KE increases).

GPE

High, slow

Low, fast

Formula: mgh = ½mv² (assuming 100% efficiency, no air resistance)

EPE → KE

Springs & Elastic Objects

Description: When a stretched spring is released, stored elastic energy converts to kinetic energy.

EPE

Stretched spring

Moving object

Formula: ½kx² = ½mv² (assuming 100% efficiency)

KE → Thermal

Friction & Air Resistance

Description: When objects slide or move through air, friction converts kinetic energy to thermal energy (heat).

Moving object

Thermal

Heat energy

Example: Brakes get hot when stopping a car. Rubbing hands together generates heat.

Interactive Roller Coaster Simulation

Watch how gravitational potential energy converts to kinetic energy and back again in a roller coaster!

Initial Height (m): 50

50 m

Car Mass (kg): 200

200 kg

Efficiency (%): 90

90%

Energy Calculations

Initial GPE

98,000 J

GPE = mgh

Max KE

88,200 J

KE = ½mv²

Energy "Lost"

9,800 J

As heat & sound

At bottom: v = √(2gh × efficiency) = 29.7 m/s

The roller coaster shows energy conservation: GPE at top converts to KE at bottom, then back to GPE as it climbs again (minus losses to friction and air resistance).

Pendulum Energy Conversion

A pendulum demonstrates continuous conversion between GPE and KE:

At Highest Point

Maximum GPE

Minimum KE (v = 0)

All energy is gravitational potential

At Lowest Point

Maximum KE

Minimum GPE (h = 0)

All energy is kinetic

Energy Efficiency

In real systems, energy conversions are never 100% efficient. Some energy is always transferred to the surroundings as:

Thermal energy (heat from friction)
Sound energy (vibrations in air)
Light energy (sparks, glowing)

Efficiency Formula: Efficiency = (Useful Energy Output ÷ Total Energy Input) × 100%

Example: A car engine might be 25-30% efficient. Most of the fuel's chemical energy becomes waste heat!

Sankey Diagram: Energy Flow

Sankey diagrams show how energy is transformed and transferred in a system:

The width of each arrow represents the amount of energy. Notice how most energy becomes waste heat in real systems.

Solved Example Problems

Example 1: Falling Object

GCSE Foundation

A 2 kg object is dropped from a height of 20 m. Calculate its speed just before it hits the ground, assuming no air resistance. (Use g = 10 N/kg)

Step 1: Apply conservation of energy

GPE at top = KE at bottom (assuming 100% conversion)

mgh = ½mv²

Step 2: Cancel mass from both sides

Since mass appears on both sides, it cancels out:

gh = ½v²

Step 3: Rearrange to solve for v²

v² = 2gh

Step 4: Substitute values

v² = 2 × 10 × 20 = 400

Step 5: Take square root

v = √400 = 20

Step 6: State the answer with units

Speed = 20 m/s

Step 7: Interpretation

All gravitational potential energy converts to kinetic energy. The speed doesn't depend on mass!

Example 2: Spring Launch

GCSE Higher

A spring with constant 200 N/m is compressed 0.1 m and used to launch a 0.05 kg ball horizontally. Calculate the ball's speed as it leaves the spring, assuming 80% of the elastic energy converts to kinetic energy.

Step 1: Calculate elastic potential energy

EPE = ½kx² = ½ × 200 × (0.1)²

EPE = ½ × 200 × 0.01 = 1 J

Step 2: Account for efficiency

Only 80% converts to KE:

KE = 80% of EPE = 0.8 × 1 = 0.8 J

Step 3: Use kinetic energy formula

KE = ½mv²

0.8 = ½ × 0.05 × v²

Step 4: Rearrange to solve for v²

v² = (2 × KE) ÷ m = (2 × 0.8) ÷ 0.05

v² = 1.6 ÷ 0.05 = 32

Step 5: Take square root

v = √32 ≈ 5.66

Step 6: State the answer with units

Speed = 5.7 m/s (to 2 significant figures)

Step 7: Interpretation

20% of the spring's energy was "lost" as heat and sound during the launch.

Example 3: Energy Conservation with Friction

Grade 10

A 10 kg box slides down a 5 m high frictionless ramp, then travels 20 m along a horizontal surface with friction before stopping. If the frictional force is 20 N, calculate the box's speed at the bottom of the ramp.

Step 1: Calculate initial GPE

GPE = mgh = 10 × 10 × 5 = 500 J (using g = 10 N/kg)

Step 2: Calculate work done against friction

Work = Force × Distance = 20 N × 20 m = 400 J

Step 3: Apply energy conservation

Initial GPE = KE at bottom + Work against friction

500 = KE + 400

KE at bottom = 500 - 400 = 100 J

Step 4: Use kinetic energy formula

KE = ½mv²

100 = ½ × 10 × v²

100 = 5 × v²

Step 5: Solve for v²

v² = 100 ÷ 5 = 20

Step 6: Take square root

v = √20 ≈ 4.47

Step 7: State the answer with units

Speed = 4.5 m/s (to 2 significant figures)

Step 8: Interpretation

Only 100 J of the initial 500 J became kinetic energy. 400 J converted to thermal energy due to friction.

Practice Problems

Test your understanding with these energy conversion problems:

Problem 1: Simple Pendulum

GCSE Foundation

A 0.5 kg pendulum bob is lifted to a height of 0.8 m and released. Calculate its maximum speed at the lowest point, assuming no energy losses. (Use g = 10 N/kg)

Problem 2: Spring Efficiency

GCSE Higher

A spring (k = 500 N/m) is compressed 0.2 m and launches a 0.1 kg ball vertically. If the ball rises to a height of 8 m, calculate the efficiency of the energy conversion.

Problem 3: Energy Transformation Chain

Grade 10 Challenge

A hydroelectric power station uses water falling from 50 m height. The water flows at 100 kg/s. The turbine-generator system is 80% efficient.

Calculate the electrical power output in watts.
If this electricity powers 20 W light bulbs, how many bulbs can it power?

Power Output (W):

Number of Bulbs:

Energy Conversion Calculator

Use this calculator to solve energy conversion problems:

Solve Energy Conversion Problems

Height (m)

Efficiency (%)

g (N/kg)

Spring Constant (N/m)

Extension (m)

Mass (kg)

Efficiency (%)

Energy Input (J)

Useful Output (J)

Result:

Real-World Examples

Free Demo Class

Master energy conservation problems and calculations with our expert tutors in an interactive online session

Book Free Demo

Limited spots available for Year 9-10 students

Quick Tip: Mass Cancels Out

In GPE to KE conversions for falling objects, mass cancels from the equation: mgh = ½mv² → gh = ½v². This means all objects fall at the same rate (in vacuum)!

Energy Flow Tips

Always track where energy goes. Draw energy flow diagrams for complex problems. Remember: Total Energy In = Total Energy Out (including "waste" energy).

Common Mistake

Don't forget efficiency! Real systems are never 100% efficient. Always check if the problem mentions friction, air resistance, or efficiency percentages.

Energy Chains

Many processes involve multiple energy conversions:
Hydroelectric: GPE → KE → Electrical
Car: Chemical → Thermal → KE
Human: Chemical → KE + Thermal

Physics

Thermal Energy

Admin / January 15, 2026

Thermal Energy | SmartLearners

Thermal Energy & Heat Transfer

Understanding temperature, heat, specific heat capacity, and heat transfer mechanisms for GCSE, Grade 9-10, Year 9-10

What is Thermal Energy?

Thermal energy is the total kinetic energy of all the particles in a substance. It depends on the temperature, mass, and specific heat capacity of the material. Thermal energy flows from hotter objects to cooler ones until thermal equilibrium is reached.

Temperature

Average kinetic energy of particles. Measured in °C, K, or °F. Determines direction of heat flow.

Mass (m)

The amount of substance. More mass means more particles, so more thermal energy at same temperature.

Specific Heat Capacity (c)

Energy needed to raise 1 kg of substance by 1°C. Water has high c (4180 J/kg°C), metals have low c.

Key Concept

Temperature vs. Thermal Energy: Temperature measures how hot something is (average kinetic energy per particle). Thermal energy measures the total kinetic energy of ALL particles. A cup of boiling water and a bathtub of warm water could have the same temperature, but the bathtub has much more thermal energy!

The Thermal Energy Formula

Thermal Energy Change Formula

Q = m × c × ΔT

Where thermal energy change (Q) equals mass (m) times specific heat capacity (c) times temperature change (ΔT)

Thermal Energy (joules, J)

Mass (kilograms, kg)

Specific Heat Capacity (J/kg°C)

ΔT

Temperature Change (°C)

Specific Heat Capacity of Common Materials

Different materials require different amounts of energy to change their temperature:

Material	Specific Heat Capacity (J/kg°C)	Thermal Properties
Water	4180	High - stores heat well, cools slowly
Aluminum	900	Moderate - heats and cools quickly
Iron	450	Low - heats and cools very quickly
Copper	385	Very low - excellent heat conductor
Air	1000	Moderate - poor conductor but can store heat
Wood	1700	Moderate - good insulator

Derivation and Explanation

The formula Q = mcΔT comes from experimental observations. Let's explore what it means:

Understanding the Formula

Definition of Specific Heat Capacity

Specific heat capacity (c) is defined as the energy required to raise the temperature of 1 kg of a substance by 1°C.

c = Q ÷ (m × ΔT) for 1 kg, 1°C

Energy is Proportional to Mass

For the same temperature change, a larger mass requires more energy. Double the mass = double the energy.

Q ∝ m (for constant c and ΔT)

Energy is Proportional to Temperature Change

For the same mass, a larger temperature change requires more energy. Double ΔT = double the energy.

Q ∝ ΔT (for constant m and c)

Energy Depends on Material Property

Different materials require different amounts of energy for the same m and ΔT. This is the specific heat capacity (c).

Q ∝ c (for constant m and ΔT)

Combine All Relationships

Putting all proportionalities together gives us the thermal energy formula.

Q = m × c × ΔT

Important Note

ΔT (temperature change) is always calculated as final temperature - initial temperature. A positive ΔT means the object gained thermal energy (heated up). A negative ΔT means the object lost thermal energy (cooled down).

Interactive Heat Transfer Simulation

Explore how thermal energy flows between objects and how different materials store heat.

Mass (kg): 1.0

1.0 kg

Material:

ΔT (°C): 50

50 °C

Thermal Energy Calculation

Mass

1.0 kg

Specific Heat (c)

900 J/kg°C

ΔT

50 °C

Thermal Energy (Q)

45,000 J

Q = 1.0 kg × 900 J/kg°C × 50 °C = 45,000 J

Notice how materials with lower specific heat capacity (like copper) require less energy to change temperature compared to water!

States of Matter and Thermal Energy

Adding or removing thermal energy can change the state of matter (solid, liquid, gas). During phase changes, temperature stays constant while thermal energy is absorbed or released.

Solid

Particles vibrate in fixed positions. Adding thermal energy increases vibration until melting point.

Example: Ice at 0°C requires 334,000 J/kg to melt (latent heat of fusion)

Liquid

Particles can slide past each other. Adding thermal energy increases motion until boiling point.

Example: Water at 100°C requires 2,260,000 J/kg to vaporize

Gas

Particles move freely and rapidly. Adding thermal energy increases speed and pressure.

Example: Steam at 100°C has much more thermal energy than water at 100°C

Heating Curve

When heating a substance, temperature increases steadily except during phase changes (melting, boiling). During phase changes, temperature remains constant while thermal energy breaks or forms bonds between particles.

Real-World Examples of Thermal Energy

Thermal energy transfer is essential in many everyday applications and technologies:

Home Insulation

Insulation materials with low thermal conductivity slow heat transfer, keeping homes warm in winter and cool in summer.

Calculation: A 50 m² wall with 10°C difference loses ~500W without insulation, but only ~50W with good insulation.

Car Engine Cooling

Water in car radiators absorbs heat from the engine (high c means it can absorb lots of heat without boiling).

Calculation: 5 kg of water cooling from 90°C to 70°C releases: Q = 5 × 4180 × 20 = 418,000 J

Cooking with Different Pans

Copper-bottom pans heat quickly (low c), while cast iron pans retain heat well (moderate c but high density).

Calculation: 1 kg copper pan heated 200°C requires: Q = 1 × 385 × 200 = 77,000 J

Solved Example Problems (GCSE Level)

Example 1: Heating Water

GCSE Foundation

Calculate the thermal energy required to heat 2 kg of water from 20°C to 100°C. The specific heat capacity of water is 4180 J/kg°C.

Step 1: Write the formula

Q = m × c × ΔT

Step 2: Identify known values

m = 2 kg, c = 4180 J/kg°C, T₁ = 20°C, T₂ = 100°C

Step 3: Calculate temperature change

ΔT = T₂ - T₁ = 100°C - 20°C = 80°C

Step 4: Substitute values into formula

Q = 2 × 4180 × 80

Step 5: Perform multiplication

2 × 4180 = 8360

8360 × 80 = 668,800

Step 6: State the answer with units

Q = 668,800 J or 668.8 kJ

Step 7: Interpretation

It takes 668,800 joules of thermal energy to heat 2 kg of water from 20°C to boiling point (100°C).

Example 2: Finding Specific Heat Capacity

GCSE Higher

A 0.5 kg block of metal is heated using a 1000 W heater for 2 minutes. Its temperature increases from 20°C to 80°C. Calculate the specific heat capacity of the metal.

Step 1: Calculate energy supplied

Power = 1000 W, Time = 2 minutes = 120 seconds

Energy = Power × Time = 1000 × 120 = 120,000 J

Step 2: Write the thermal energy formula

Q = m × c × ΔT

Step 3: Rearrange to solve for c

c = Q ÷ (m × ΔT)

Step 4: Identify known values

Q = 120,000 J, m = 0.5 kg, ΔT = 80°C - 20°C = 60°C

Step 5: Substitute values into formula

c = 120,000 ÷ (0.5 × 60)

Step 6: Calculate denominator

0.5 × 60 = 30

c = 120,000 ÷ 30

Step 7: Perform division

120,000 ÷ 30 = 4,000

Step 8: State the answer with units

c = 4000 J/kg°C

Step 9: Interpretation

The metal has a specific heat capacity of 4000 J/kg°C, which is relatively high (close to water).

Example 3: Thermal Equilibrium

Grade 10

A 0.2 kg copper block (c = 385 J/kg°C) at 100°C is placed in 0.5 kg of water (c = 4180 J/kg°C) at 20°C. Assuming no heat loss to surroundings, calculate the final temperature of the mixture.

Step 1: Principle of conservation of energy

Heat lost by copper = Heat gained by water

Q_{copper lost} = Q_{water gained}

Step 2: Write expressions for heat transfer

For copper: Q_lost = m_Cu × c_Cu × (100 - T_f)

For water: Q_gained = m_w × c_w × (T_f - 20)

Step 3: Set them equal

0.2 × 385 × (100 - T_f) = 0.5 × 4180 × (T_f - 20)

Step 4: Simplify both sides

Left side: 0.2 × 385 = 77, so 77 × (100 - T_f) = 7700 - 77T_f

Right side: 0.5 × 4180 = 2090, so 2090 × (T_f - 20) = 2090T_f - 41,800

Step 5: Set up equation

7700 - 77T_f = 2090T_f - 41,800

Step 6: Rearrange to solve for T_f

7700 + 41,800 = 2090T_f + 77T_f

49,500 = 2167T_f

Step 7: Solve for T_f

T_f = 49,500 ÷ 2167 ≈ 22.84

Step 8: State the answer with units

Final temperature ≈ 22.8°C

Step 9: Interpretation

The water's high specific heat capacity and larger mass mean it doesn't warm up much, while the small copper block cools significantly.

Practice Problems (Unsolved)

Test your understanding with these GCSE-level problems. Try to solve them yourself before checking the answers!

Problem 1: Heating Aluminum

GCSE Foundation

A 1.5 kg aluminum pan (c = 900 J/kg°C) is heated from 25°C to 175°C. Calculate the thermal energy required.

Problem 2: Finding Temperature Change

GCSE Higher

When 250,000 J of thermal energy is supplied to 4 kg of water (c = 4180 J/kg°C), calculate the temperature increase.

Problem 3: Mixing Different Temperatures

Grade 10 Challenge

0.1 kg of iron (c = 450 J/kg°C) at 150°C is placed in 0.3 kg of water (c = 4180 J/kg°C) at 25°C. Calculate the final temperature of the mixture, assuming no heat loss.

Thermal Energy Calculator

Use this calculator to solve for any variable in the thermal energy equation (Q = m × c × ΔT).

Solve Thermal Energy Problems

Mass (kg)

Specific Heat (J/kg°C)

ΔT (°C)

Q (J)

Specific Heat (J/kg°C)

ΔT (°C)

Q (J)

Mass (kg)

ΔT (°C)

Q (J)

Mass (kg)

Specific Heat (J/kg°C)

Result:

Real-World Applications

Free Demo Class

Master thermal energy calculations and heat transfer with our expert tutors in an interactive online session

Book Free Demo

Limited spots available for Year 9-10 students

Quick Tip: Water's High c

Water has a very high specific heat capacity (4180 J/kg°C). This means it takes a lot of energy to heat water, but it also releases a lot of energy when cooling. That's why coastal areas have milder climates!

Units Check

Always ensure your units are consistent: mass in kg, specific heat in J/kg°C, temperature change in °C, and energy in joules (J). 1 kJ = 1000 J.

Common Mistake

Don't confuse temperature with thermal energy! Two objects at the same temperature can have different thermal energies if they have different masses or materials.

Heat Transfer Methods

Conduction: Through solids (touch)
Convection: Through fluids (liquids/gases)
Radiation: Through empty space (infrared)

Physics

Elastic Potential Energy

Admin / December 24, 2025

Elastic Potential Energy | SmartLearners

Elastic Potential Energy

Understanding stored energy in stretched or compressed objects - springs, rubber bands, and more for GCSE, Grade 9-10, Year 9-10

What is Elastic Potential Energy?

Elastic potential energy (EPE) is the energy stored in elastic materials when they are stretched or compressed. This energy is 'potential' because it has the potential to do work when the material returns to its original shape.

Spring Constant (k)

The stiffness of the spring. Higher k means a stiffer spring that's harder to stretch.

Extension (x)

How far the spring is stretched or compressed from its natural length.

Energy Stored (EPE)

EPE increases with the square of extension. Double extension = 4× energy!

Key Concept

Elastic potential energy is stored when work is done to deform an elastic object. When the force is removed, this stored energy is released as the object returns to its original shape. This is described by Hooke's Law for materials within their elastic limit.

The EPE Formula

Elastic Potential Energy Formula

EPE = ½ × k × x²

Where elastic potential energy (EPE) equals one-half times spring constant (k) times extension squared (x²)

EPE

Elastic Potential Energy (joules, J)

Spring constant (N/m)

Extension/compression (meters, m)

Constant factor (one-half)

Hooke's Law Connection

Elastic potential energy is related to Hooke's Law, which states: F = k × x, where:

F = Force applied to stretch/compress the spring (N)
k = Spring constant (N/m)
x = Extension/compression (m)

The EPE formula (½kx²) comes from calculating the work done to stretch the spring, which is the area under the force-extension graph.

Derivation of the Formula

The EPE formula comes from calculating the work done to stretch a spring. Since the force needed increases as the spring stretches, we need to use integration or calculate the area under the force-extension graph.

Derivation Steps

Hooke's Law

The force needed to stretch a spring is proportional to the extension: F = k × x

F = k × x

Work Done

Work done (W) = average force × distance. For a changing force, work is the area under the force-extension graph.

W = Area under F-x graph

Force-Extension Graph

The graph of F = kx is a straight line through the origin. The area under this line to extension x is a triangle.

Area = ½ × base × height

Calculate Area

Base = extension (x), Height = force at full extension (kx)

Area = ½ × x × (k × x)

Simplify

This area equals the work done to stretch the spring, which is stored as elastic potential energy.

EPE = ½ × k × x²

Important Note

The EPE formula only applies when the material obeys Hooke's Law (within the elastic limit). Beyond this limit, the material may be permanently deformed or break, and the formula doesn't apply.

Interactive Spring System Simulation

Explore how mass, spring constant, and gravity affect elastic potential energy in a hanging spring-mass system.

Mass (kg): 0.5

0.5 kg

Spring Constant (N/m): 50

50 N/m

Gravity (N/kg): 9.8

9.8 N/kg

Spring System Calculations

Extension (x)

0.098 m

x = mg/k

Force (F)

4.9 N

F = mg

EPE Stored

0.24 J

EPE = ½kx²

The mass stretches the spring until the spring force (kx) equals the weight (mg). At equilibrium: kx = mg, so x = mg/k.

Graphical Representation

EPE increases with the square of extension, creating a parabolic relationship. The force-extension graph is linear (Hooke's Law).

EPE vs. Extension

EPE increases with extension squared. Double extension = 4× EPE!

Force vs. Extension (Hooke's Law)

Force increases linearly with extension. Slope = spring constant (k).

Real-World Examples of EPE

Elastic potential energy is all around us. Here are some common examples:

Archery Bows

When an archer pulls back the bowstring, they store EPE in the bent bow. Releasing transfers this energy to the arrow as kinetic energy.

Calculation: For k = 200 N/m bow pulled back 0.3 m: EPE = ½ × 200 × (0.3)² = 9 J

Car Suspension

Springs in car suspension store EPE when compressed by bumps. This energy is then gradually released, giving a smoother ride.

Calculation: For k = 20,000 N/m spring compressed 0.05 m: EPE = ½ × 20000 × (0.05)² = 25 J

Trampolines

When you jump on a trampoline, the springs stretch and store EPE. This energy then pushes you back up on the next bounce.

Calculation: For k = 1000 N/m trampoline stretched 0.2 m: EPE = ½ × 1000 × (0.2)² = 20 J

Solved Example Problems (GCSE Level)

Example 1: Basic EPE Calculation

GCSE Foundation

A spring has a spring constant of 80 N/m. It is stretched by 0.15 m from its natural length. Calculate the elastic potential energy stored in the spring.

Step 1: Write the formula

EPE = ½ × k × x²

Step 2: Identify known values

k = 80 N/m, x = 0.15 m

Step 3: Substitute values into formula

EPE = ½ × 80 × (0.15)²

Step 4: Calculate extension squared

(0.15)² = 0.15 × 0.15 = 0.0225

EPE = ½ × 80 × 0.0225

Step 5: Perform multiplication

½ × 80 = 40

40 × 0.0225 = 0.9

Step 6: State the answer with units

EPE = 0.9 J

Example 2: Finding Spring Constant from EPE

GCSE Higher

A spring stores 2.0 J of elastic potential energy when stretched by 0.1 m. Calculate the spring constant of the spring.

Step 1: Write the formula

EPE = ½ × k × x²

Step 2: Rearrange to solve for k

k = (2 × EPE) ÷ x²

Step 3: Identify known values

EPE = 2.0 J, x = 0.1 m

Step 4: Substitute values into formula

k = (2 × 2.0) ÷ (0.1)²

Step 5: Calculate numerator and denominator

2 × 2.0 = 4.0

(0.1)² = 0.01

k = 4.0 ÷ 0.01

Step 6: Perform division

4.0 ÷ 0.01 = 400

Step 7: State the answer with units

Spring constant = 400 N/m

Example 3: Energy Conversion - Spring Launcher

Grade 10

A spring with constant 500 N/m is compressed 0.08 m and used to launch a 0.02 kg ball horizontally. Assuming all EPE converts to kinetic energy, calculate the speed of the ball as it leaves the spring.

Step 1: Calculate EPE stored in spring

EPE = ½ × k × x² = ½ × 500 × (0.08)²

EPE = ½ × 500 × 0.0064 = 1.6 J

Step 2: Set EPE equal to kinetic energy

Assuming all EPE converts to KE: EPE = KE = ½ × m × v²

1.6 = ½ × 0.02 × v²

Step 3: Rearrange to solve for v²

v² = (2 × EPE) ÷ m = (2 × 1.6) ÷ 0.02

v² = 3.2 ÷ 0.02 = 160

Step 4: Take square root to find v

v = √160 ≈ 12.65

Step 5: State the answer with units

Speed = 12.7 m/s (to 3 significant figures)

Step 6: Interpretation

The compressed spring stores 1.6 J of EPE, which converts to kinetic energy, launching the ball at 12.7 m/s.

Practice Problems (Unsolved)

Test your understanding with these GCSE-level problems. Try to solve them yourself before checking the answers!

Problem 1: Rubber Band Energy

GCSE Foundation

A rubber band has a spring constant of 40 N/m. It is stretched by 0.25 m. Calculate the elastic potential energy stored in the rubber band.

Problem 2: Finding Extension from EPE

GCSE Higher

A spring with constant 200 N/m stores 6.25 J of elastic potential energy. Calculate the extension of the spring.

Problem 3: Spring-Mass System

Grade 10 Challenge

A 0.8 kg mass hangs from a spring with constant 160 N/m. Calculate:

The extension of the spring at equilibrium (use g = 10 N/kg)
The elastic potential energy stored in the spring at this extension

Extension (m):

EPE (J):

EPE Calculator

Use this calculator to solve for any variable in the EPE equation (EPE = ½ × k × x²).

Solve EPE Problems

Spring Constant (N/m)

Extension (m)

EPE (J)

Extension (m)

EPE (J)

Spring Constant (N/m)

Result:

Real-World Applications

Free Demo Class

Master EPE calculations and spring systems with our expert tutors in an interactive online session

Book Free Demo

Limited spots available for Year 9-10 students

Quick Tip: Extension Squared

Remember that EPE depends on extension squared. This means if you double the extension, EPE increases by a factor of 4. If you triple the extension, EPE increases by a factor of 9!

Units Check

Always ensure your units are consistent: spring constant in N/m, extension in m, and energy in joules (J). 1 J = 1 N·m.

Elastic Limit

The EPE formula only applies within the elastic limit. Beyond this point, the material won't return to its original shape and may break.

Physics

Gravitational Potential Energy

Admin / December 24, 2025

Gravitational Potential Energy | SmartLearners

Gravitational Potential Energy

Understanding stored energy due to height - formula, derivation, and real-world applications for GCSE, Grade 9-10, Year 9-10

What is Gravitational Potential Energy?

Gravitational potential energy (GPE) is the energy stored in an object when it is raised above the ground. This energy is 'potential' because it has the potential to do work when the object falls.

Mass (m)

The heavier the object, the more GPE it has at the same height.

Height (h)

The higher the object, the more GPE it has. GPE is directly proportional to height.

Gravity (g)

GPE depends on gravitational field strength. On Earth, g ≈ 9.8 N/kg.

Key Concept

Gravitational potential energy is energy stored due to an object's position in a gravitational field. When the object falls, this stored energy is converted to kinetic energy.

The GPE Formula

Gravitational Potential Energy Formula

GPE = m × g × h

Where gravitational potential energy (GPE) equals mass (m) times gravitational field strength (g) times height (h)

GPE

Gravitational Potential Energy (joules, J)

Mass (kilograms, kg)

Gravitational field strength (N/kg)

Height (meters, m)

Important Note

On Earth, we often use g = 9.8 N/kg for accurate calculations or g = 10 N/kg for simpler calculations. Remember that g varies on different planets:

Earth: 9.8 N/kg (≈10 N/kg for approximation)
Moon: 1.6 N/kg
Mars: 3.7 N/kg
Jupiter: 24.8 N/kg

Derivation of the Formula

The GPE formula comes from the work done against gravity to lift an object. Let's derive it step by step:

Derivation Steps

Work Done Against Gravity

When lifting an object, we do work against gravity. Work done (W) = force (F) × distance (d).

W = F × d

Force Required to Lift

To lift an object at constant velocity, we need to apply a force equal to its weight.

F = m × g

Distance is Height

The distance moved against gravity is the height (h) the object is lifted.

d = h

Substitute into Work Formula

Substitute F = m × g and d = h into the work formula:

W = (m × g) × h

Work Done = GPE Gained

The work done against gravity is stored as gravitational potential energy in the object.

GPE = m × g × h

Graphical Representation

GPE increases linearly with both mass and height when other factors are constant.

GPE vs. Height

GPE increases linearly with height. Double the height = double the GPE (for same mass).

GPE vs. Mass

GPE increases linearly with mass. Double the mass = double the GPE (at same height).

Real-World Examples of GPE

Gravitational potential energy is all around us. Here are some common examples:

Hydroelectric Dams

Water stored at height in reservoirs has GPE. When released, it flows down through turbines, converting GPE to kinetic energy, then to electrical energy.

Calculation: 1000 kg water at 50 m height has GPE = 1000 × 10 × 50 = 500,000 J

Pile Drivers

A heavy weight is lifted to gain GPE, then dropped to drive piles into the ground. The GPE converts to kinetic energy to do work.

Calculation: 500 kg weight at 10 m height has GPE = 500 × 10 × 10 = 50,000 J

Ski Slopes

Skiers at the top of a slope have GPE. As they ski down, GPE converts to kinetic energy, making them go faster.

Calculation: 70 kg skier at 100 m height has GPE = 70 × 10 × 100 = 70,000 J

Interactive GPE Simulation

Adjust the mass, height, and gravity to see how they affect gravitational potential energy in real-time.

Mass (kg): 5

5 kg

Height (m): 10

10 m

Gravity (N/kg): 9.8

9.8 N/kg

10 m

5 kg

Calculated Gravitational Potential Energy

490 J

GPE = 5 kg × 9.8 N/kg × 10 m

When you drop the object, its GPE converts to kinetic energy. The total energy remains constant (conservation of energy).

Solved Example Problems (GCSE Level)

Example 1: Basic GPE Calculation

GCSE Foundation

A 2 kg book is placed on a shelf 1.5 m above the ground. Calculate the gravitational potential energy of the book. (Use g = 10 N/kg)

Step 1: Write the formula

GPE = m × g × h

Step 2: Identify known values

m = 2 kg, g = 10 N/kg, h = 1.5 m

Step 3: Substitute values into formula

GPE = 2 × 10 × 1.5

Step 4: Calculate

2 × 10 = 20

20 × 1.5 = 30

Step 5: State the answer with units

GPE = 30 J

Example 2: Finding Height from GPE

GCSE Higher

A 500 g mass has 20 J of gravitational potential energy. Calculate its height above the ground. (Use g = 10 N/kg)

Step 1: Write the formula

GPE = m × g × h

Step 2: Rearrange to solve for height (h)

h = GPE ÷ (m × g)

Step 3: Convert mass to kg and identify values

500 g = 0.5 kg, GPE = 20 J, g = 10 N/kg

Step 4: Substitute values into formula

h = 20 ÷ (0.5 × 10)

Step 5: Calculate denominator

0.5 × 10 = 5

h = 20 ÷ 5

Step 6: Perform division

20 ÷ 5 = 4

Step 7: State the answer with units

Height = 4 m

Example 3: GPE on Different Planets

Grade 10

A 10 kg object is raised to a height of 5 m on Earth (g = 9.8 N/kg) and on the Moon (g = 1.6 N/kg). Calculate the difference in GPE between the two locations.

Step 1: Calculate GPE on Earth

GPE_Earth = m × g_Earth × h = 10 × 9.8 × 5

GPE_Earth = 490 J

Step 2: Calculate GPE on the Moon

GPE_Moon = m × g_Moon × h = 10 × 1.6 × 5

GPE_Moon = 80 J

Step 3: Find the difference

Difference = GPE_Earth - GPE_Moon = 490 - 80

Step 4: Calculate difference

490 - 80 = 410

Step 5: State the answer with units

Difference in GPE = 410 J

Step 6: Interpretation

The same object at the same height has much less GPE on the Moon because the Moon's gravity is weaker.

Practice Problems (Unsolved)

Test your understanding with these GCSE-level problems. Try to solve them yourself before checking the answers!

Problem 1: Water in a Tank

GCSE Foundation

A water tank contains 200 kg of water stored at a height of 8 m. Calculate the gravitational potential energy of the water. (Use g = 10 N/kg)

Problem 2: Finding Mass from GPE

GCSE Higher

A rock has 735 J of gravitational potential energy when it is 15 m above the ground. Calculate the mass of the rock. (Use g = 9.8 N/kg)

Problem 3: Energy Conversion

Grade 10 Challenge

A 0.4 kg ball is dropped from a height of 20 m. Calculate its speed just before it hits the ground. (Assume all GPE converts to kinetic energy, g = 10 N/kg, and ignore air resistance).

Hint: First calculate GPE, then use KE = ½mv² where KE = GPE.

GPE Calculator

Use this calculator to solve for any variable in the GPE equation (GPE = m × g × h).

Solve GPE Problems

Mass (kg)

Gravity (N/kg)

Height (m)

GPE (J)

Gravity (N/kg)

Height (m)

GPE (J)

Mass (kg)

Gravity (N/kg)

GPE (J)

Mass (kg)

Height (m)

Result:

Real-World Applications

Free Demo Class

Master GPE calculations with our expert tutors in an interactive online session

Book Free Demo

Limited spots available for Year 9-10 students

Quick Tip: Reference Point

Remember that GPE is always measured relative to a reference point (usually the ground). The height (h) is the vertical distance above this reference point.

Units Check

Always ensure your units are consistent: mass in kg, height in m, gravity in N/kg, and energy in joules (J). 1 J = 1 N·m = 1 kg·m²/s².

Common Mistake

Don't confuse GPE (mgh) with kinetic energy (½mv²). GPE depends on height, while kinetic energy depends on speed squared.

Physics

Kinetic Energy

Admin / December 10, 2025

Kinetic Energy: Formula & Calculations

Understanding the energy of motion - its formula, derivation, and practical applications

What is Kinetic Energy?

Kinetic energy is the energy possessed by an object due to its motion. Any object that is moving has kinetic energy. The amount of kinetic energy depends on two factors:

Mass (m)

The heavier the object, the more kinetic energy it has when moving at the same speed.

Velocity (v)

The faster the object moves, the more kinetic energy it has. Note: KE depends on velocity squared!

The Kinetic Energy Formula

Kinetic Energy Formula

KE = ½ × m × v²

Where kinetic energy (KE) equals one-half times the mass (m) times the square of the velocity (v)

Kinetic Energy (in joules, J)

Mass (in kilograms, kg)

Velocity (in meters per second, m/s)

Constant factor (one-half)

Derivation of the Formula

The kinetic energy formula can be derived from the work-energy theorem, which states that the work done on an object equals its change in kinetic energy.

Derivation Steps

Start with Work Done

Work done (W) on an object equals force (F) times displacement (s) in the direction of the force:

W = F × s

Apply Newton's Second Law

Force equals mass times acceleration (F = m × a). Substitute into the work equation:

W = (m × a) × s

Use Kinematics Equation

From kinematics, for constant acceleration starting from rest: v² = u² + 2as, where u=0, so v² = 2as, therefore a = v²/(2s):

W = m × (v²/(2s)) × s

Simplify the Equation

The displacement (s) cancels out:

W = m × v² / 2

Work Equals Change in Kinetic Energy

By the work-energy theorem, work done equals change in kinetic energy. Starting from rest, this gives us the kinetic energy formula:

KE = ½ × m × v²

Graphical Representation

The relationship between kinetic energy and velocity is quadratic, while the relationship with mass is linear.

Kinetic Energy vs. Velocity

KE increases with the square of velocity. Doubling velocity quadruples kinetic energy!

Kinetic Energy vs. Mass

KE increases linearly with mass. Doubling mass doubles kinetic energy (at constant velocity).

Interactive Kinetic Energy Demo

Adjust the mass and velocity sliders to see how they affect kinetic energy in real-time.

Mass (kg): 10

10 kg

Velocity (m/s): 10

10 m/s

Calculated Kinetic Energy

500 J

KE = ½ × 10 kg × (10 m/s)²

Example Problems

Example 1: Calculating Kinetic Energy

A car with a mass of 800 kg is traveling at a speed of 25 m/s. Calculate its kinetic energy.

Step 1: Write the formula

KE = ½ × m × v²

Step 2: Substitute known values

m = 800 kg, v = 25 m/s

KE = ½ × 800 × (25)²

Step 3: Calculate velocity squared

(25)² = 25 × 25 = 625

KE = ½ × 800 × 625

Step 4: Perform multiplication

½ × 800 = 400

400 × 625 = 250,000

Step 5: State the answer

KE = 250,000 J or 250 kJ

Example 2: Finding Mass from Kinetic Energy

A car has a kinetic energy store of 64,800 J. It is travelling at a speed of 12 m/s. Calculate its mass.

Step 1: Write the formula

KE = ½ × m × v²

Step 2: Rearrange to solve for mass (m)

m = (2 × KE) / v²

Step 3: Substitute known values

KE = 64,800 J, v = 12 m/s

m = (2 × 64,800) / (12)²

Step 4: Calculate denominator

(12)² = 12 × 12 = 144

m = (129,600) / 144

Step 5: Perform division

129,600 ÷ 144 = 900

Step 6: State the answer

Mass = 900 kg

Example 3: Finding Velocity from Kinetic Energy

A 0.5 kg ball has 100 J of kinetic energy. Calculate its velocity.

Step 1: Write the formula

KE = ½ × m × v²

Step 2: Rearrange to solve for velocity (v)

v² = (2 × KE) / m

v = √[(2 × KE) / m]

Step 3: Substitute known values

KE = 100 J, m = 0.5 kg

v = √[(2 × 100) / 0.5]

Step 4: Calculate numerator

2 × 100 = 200

v = √[200 / 0.5]

Step 5: Perform division

200 ÷ 0.5 = 400

v = √400

Step 6: Calculate square root

√400 = 20

Step 7: State the answer

Velocity = 20 m/s

Kinetic Energy Calculator

Use this calculator to solve for any variable in the kinetic energy equation.

Solve Kinetic Energy Problems

Mass (kg)

Velocity (m/s)

Kinetic Energy (J)

Velocity (m/s)

Kinetic Energy (J)

Mass (kg)

Result:

Real-World Applications

Free Demo: Kinetic Energy

Master kinetic energy calculations with our interactive demo class

Book Demo Class

Quick Tip: Velocity Squared

Remember that kinetic energy depends on velocity squared. This means if you double the speed, kinetic energy increases by a factor of 4. If you triple the speed, KE increases by a factor of 9!

Units Check

Always ensure your units are consistent: mass in kg, velocity in m/s, and energy in joules (J). 1 J = 1 kg·m²/s².

Physics

Examples of Energy Transfers

Admin / December 10, 2025

Examples of Energy Transfers

Understanding energy measurement in joules and the fundamental principle of energy conservation

Measuring Energy: The Joule

Energy is a quantity that is measured in joules, J. The joule is the SI unit of energy, named after the English physicist James Prescott Joule. Large quantities of energy are measured in kilojoules (kJ), and megajoules (MJ).

Joule (J)

1 J

The basic unit of energy

Approximately the energy needed to lift an apple 1 meter against Earth's gravity

Kilojoule (kJ)

1 kJ

Equal to 1,000 joules

1 kJ = 1,000 J (10³ J)

Megajoule (MJ)

1 MJ

Equal to 1,000,000 joules

1 MJ = 1,000,000 J (10⁶ J)

Energy Scale Examples

Small Apple (100g)

~200,000 J

Chemical energy stored

Light Bulb (60W) for 1 hour

216,000 J

Electrical energy used

Car Battery (12V, 50Ah)

2.16 MJ

Total energy storage

The Principle of Conservation of Energy

The reason that energy is so important to us is that there is always the same energy at the end of a process as there was at the beginning.

The principle of conservation of energy states that the amount of energy always remains the same. There are various stores of energy. In any process energy can be transferred from one store to another, but energy cannot be destroyed or created.

Key Insight

Energy is never "used up" - it simply transfers from one store to another. The total energy in a closed system remains constant.

Real-World Energy Transfer Examples

These examples show how energy transfers from one store to another while the total amount of energy remains constant.

Hydroelectric Power Plant

Potential energy of water in a dam converts to electrical energy through turbines and generators.

Gravitational Potential Kinetic Electrical

Total energy remains constant throughout the process

Photosynthesis in Plants

Plants convert light energy from the sun into chemical energy stored in glucose.

Light Energy Chemical Energy

Energy is conserved: Light energy = Chemical energy + Heat

Electric Room Heater

Electrical energy from the grid converts to thermal energy that warms a room.

Electrical Thermal

All electrical energy converts to heat (assuming 100% efficiency)

Human Metabolism

Chemical energy from food converts to kinetic energy for movement and thermal energy to maintain body temperature.

Chemical Kinetic + Thermal

Energy conserved: Food energy = Movement + Heat + Waste

Energy Conversion Calculator

Use this interactive calculator to convert between different energy units and see the principle of conservation in action.

Energy Unit Converter

Energy Value:

From Unit:

To Unit:

Interactive Conservation Demonstration

Drag the sliders to see how energy redistributes between different stores while the total remains constant.

Kinetic Energy 500 J

Potential Energy 500 J

Thermal Energy 0 J

Total Energy (Conserved)

1000 J

The total energy remains constant at 1000 J regardless of how it's distributed between stores.

Energy Fundamentals

Practical Applications

Free Demo: Energy Calculations

Join our interactive demo class to master energy calculations and conservation problems

Book Demo Class

Quick Tip: Energy Conservation

When solving energy problems, always start by writing the conservation equation: Initial Energy = Final Energy. This helps track energy transfers between different stores.

Historical Note

The principle of conservation of energy was first proposed in the early 19th century by several scientists including Julius von Mayer, James Joule, and Hermann von Helmholtz.

Physics
